TRAGOS

Return to Spectrograph Page

TRAnsmission Grating Optical Spectrograph

Dispersive element: 1¼" BAADER Spectrograph grating

Developed for use in the Open University SXR208 residential astronomy course at the Observatori Astronomic de Mallorca (OAM), Costitx, Spain

1st end to end assembly March 31, 2004

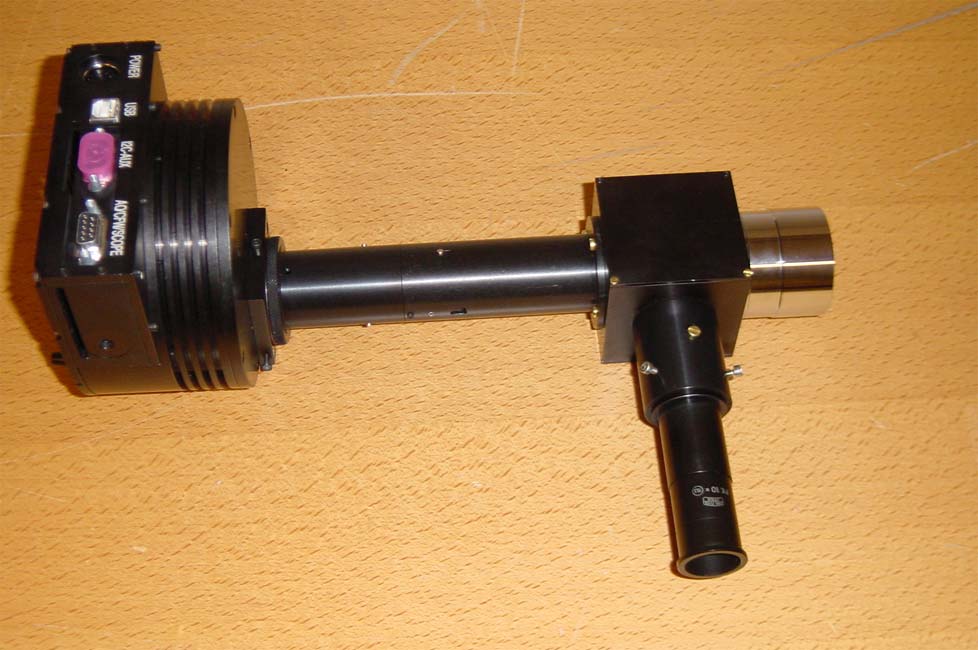

SBIG ST-7 + TRAGOS+ Microscope for guiding

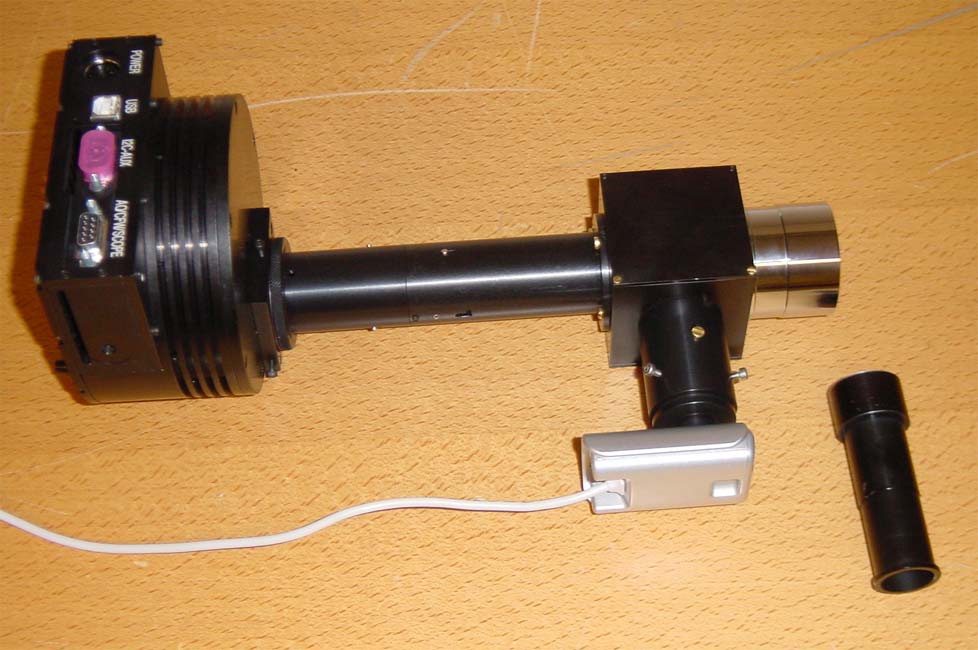

SBIG ST-7 + TRAGOS+ WebCam for guiding

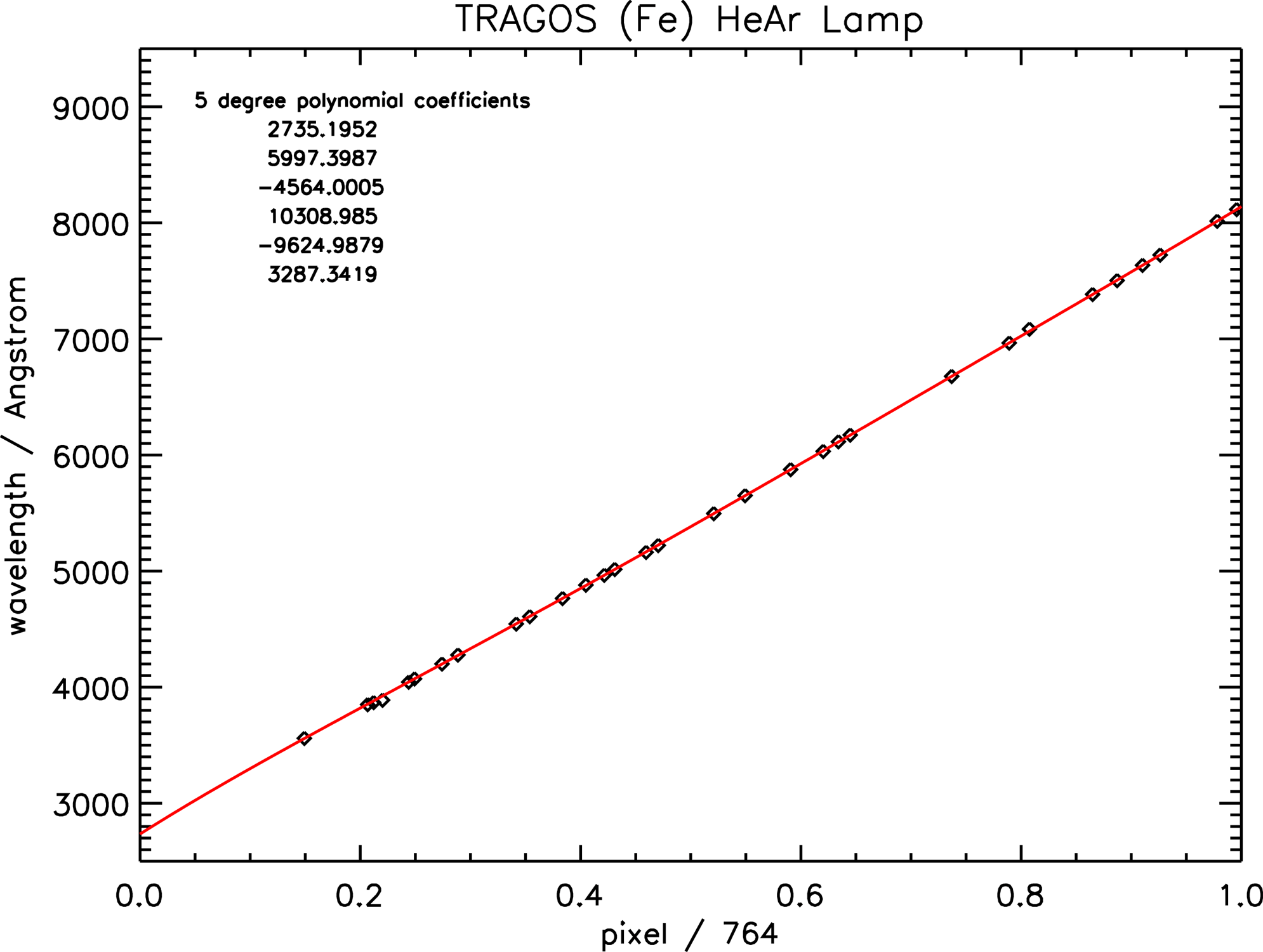

Below: TRAGOS+ST-7E dispersion relation

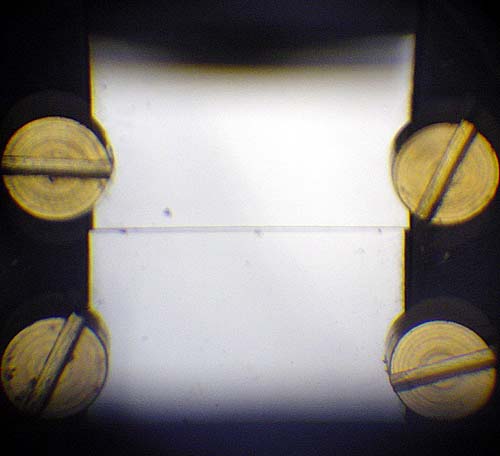

Below: View TRAGOS of the 24um slit

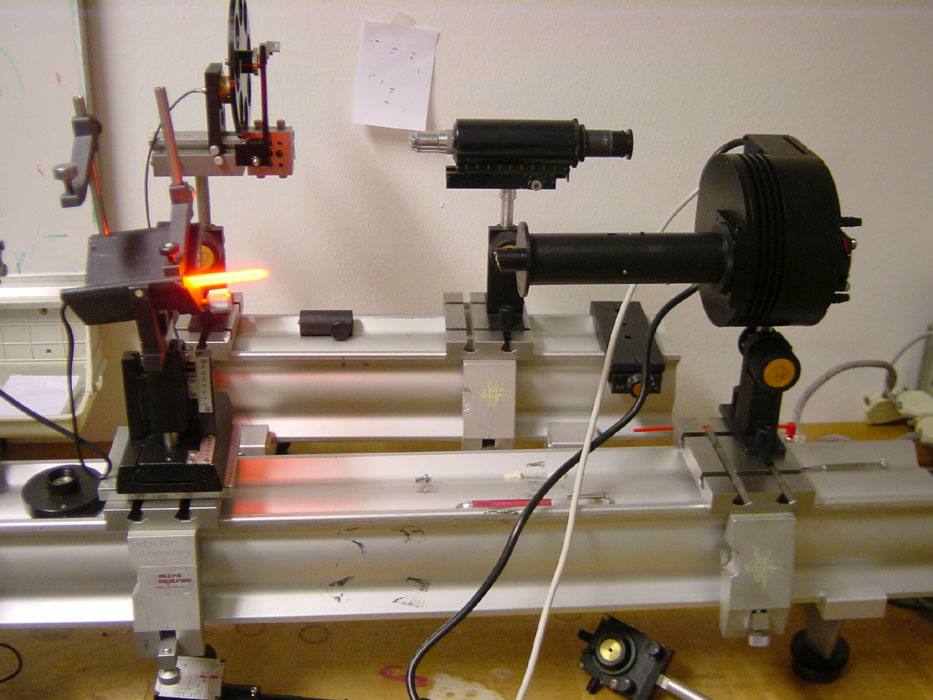

Below: Test setup with Neon lamp

Summary of 1st test of completed assembly

With TRAGOS + ST-7E CCD camera covers the Wavelength range 3500 - 8120 Angstroms with a resolution varying R=lambda/Delta lambda 270 - 600.

TRAGOS + SBIG ST-7E CCD 1st Calibration lamp spectra

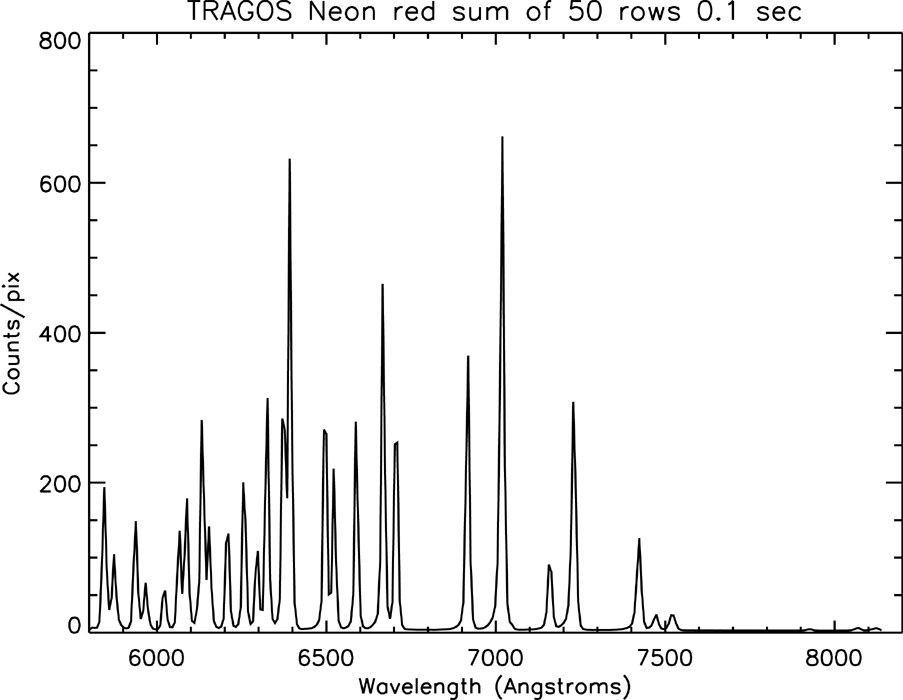

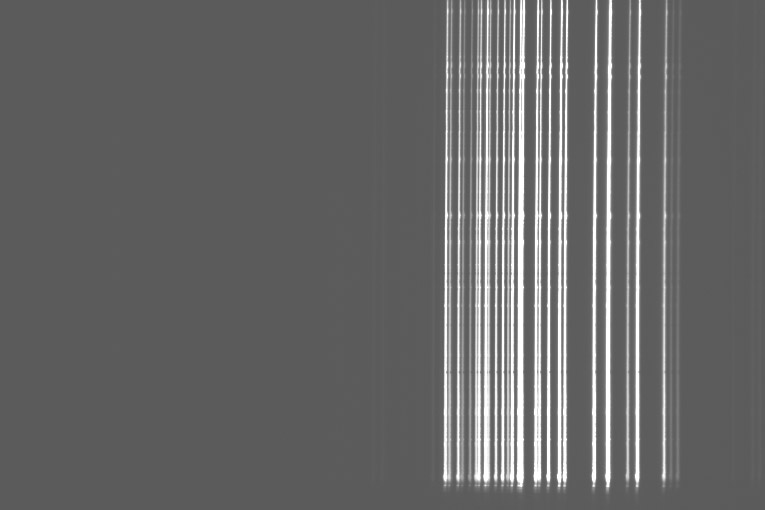

NEON Lamp

Exp.: 0.1 sec

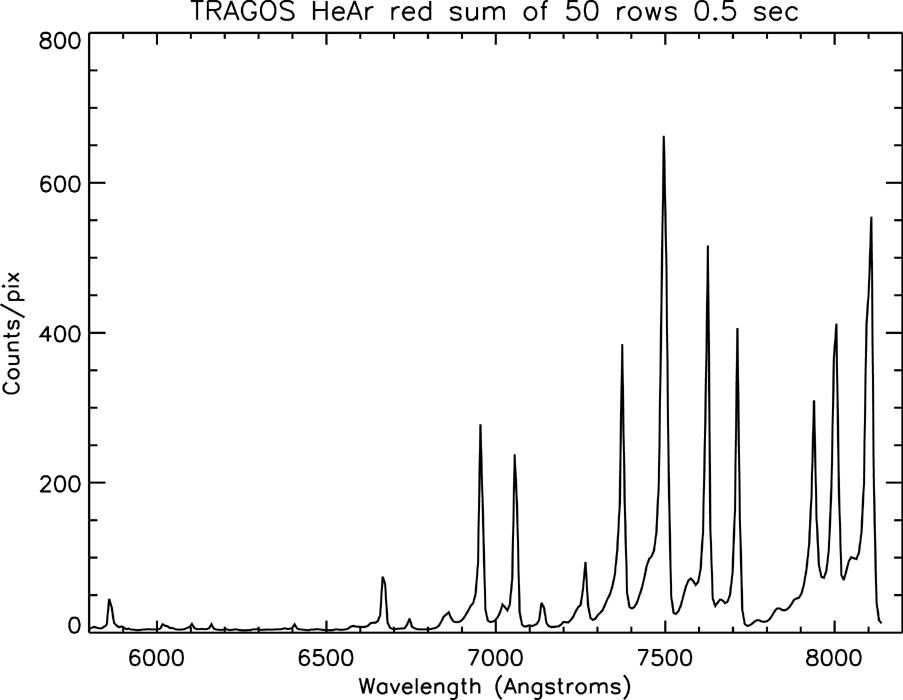

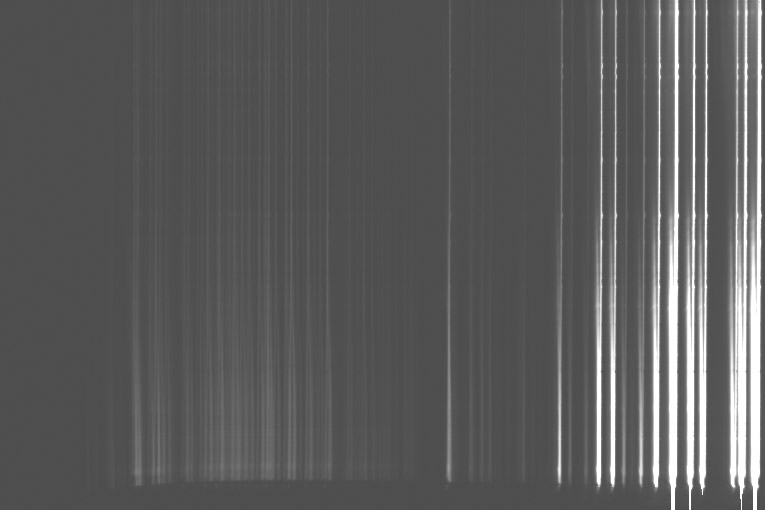

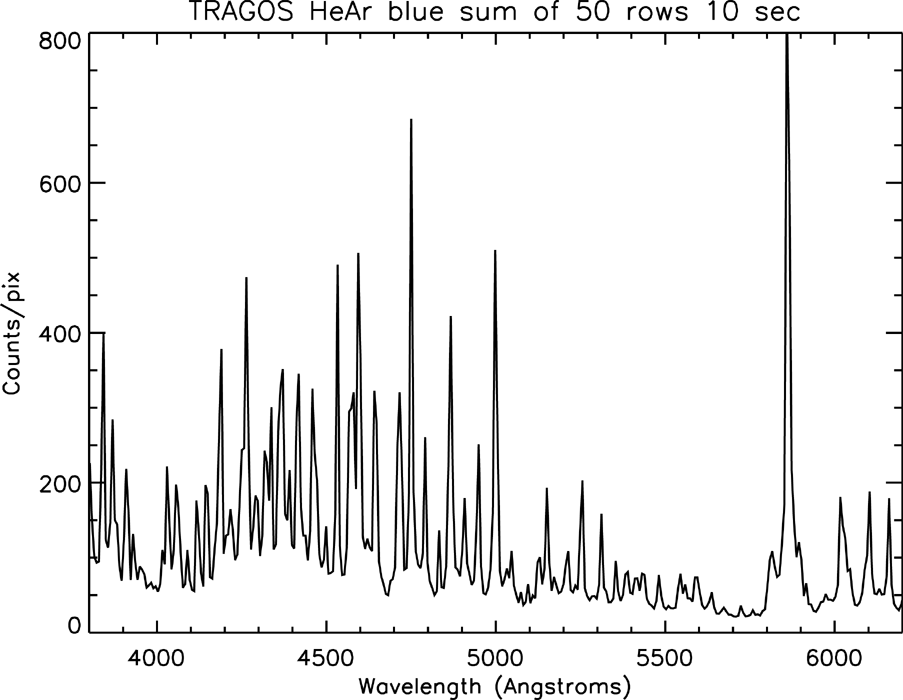

HeAr Lamp

Exp.: 0.5 sec

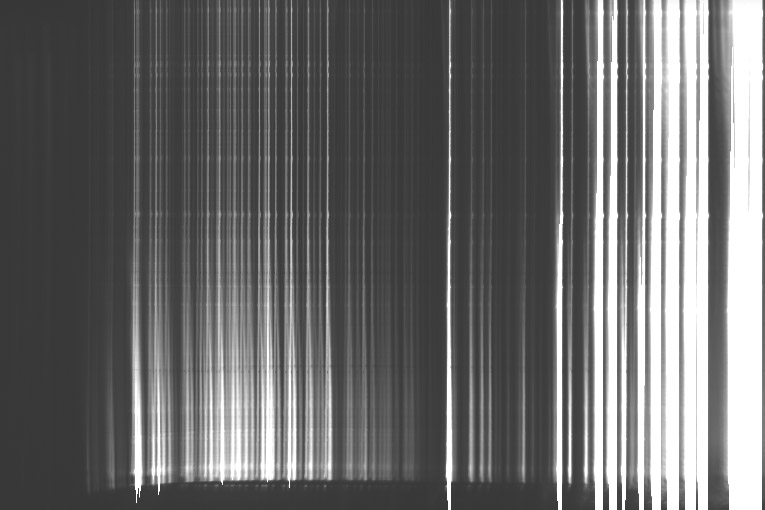

HeAr Lamp

Exp.: 10 sec

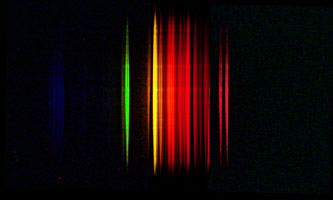

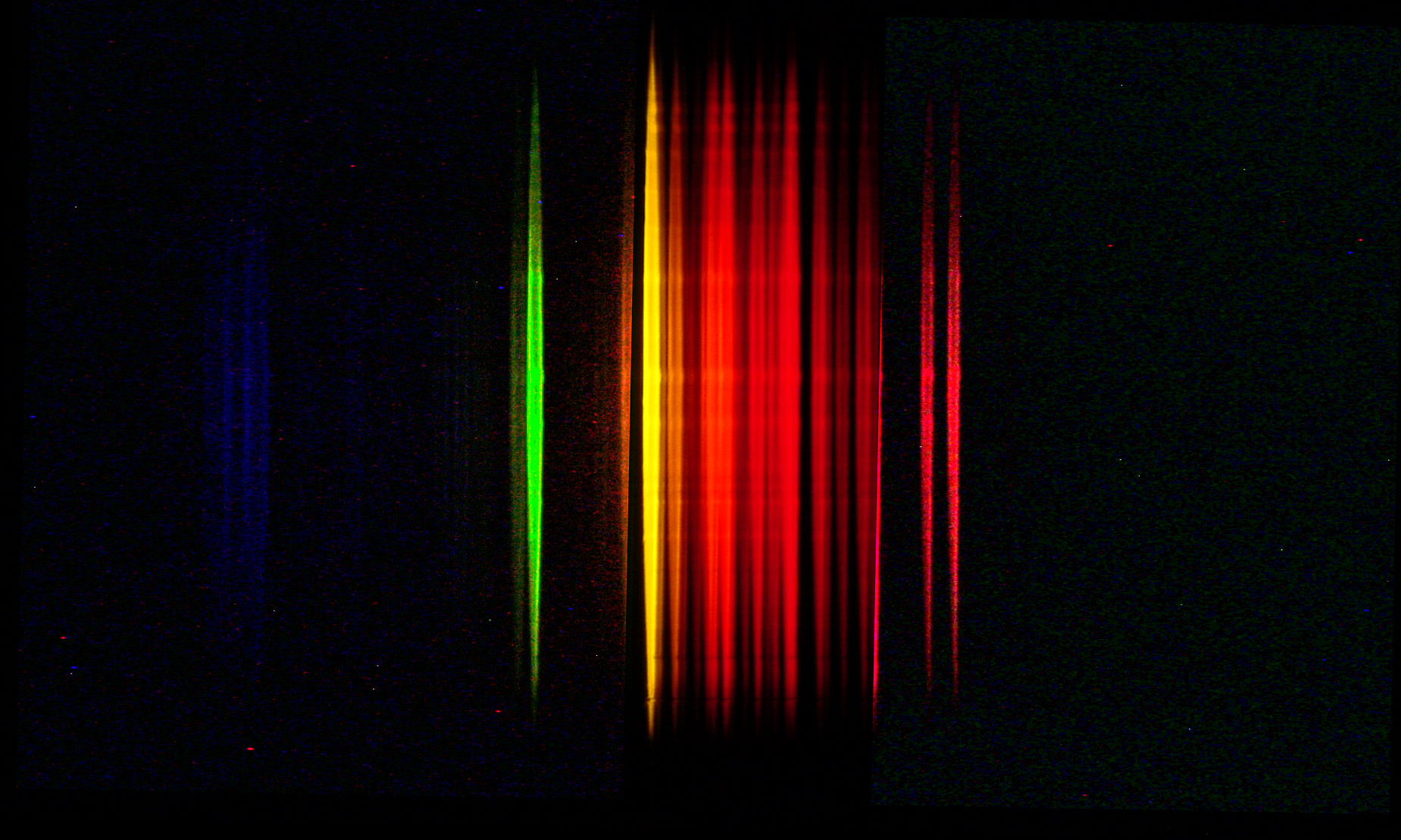

Image taken with SONY DSP-1 digicam
